POWER CORDS / Products / IEC60320 Power Cords

IEC60320 Power Cords

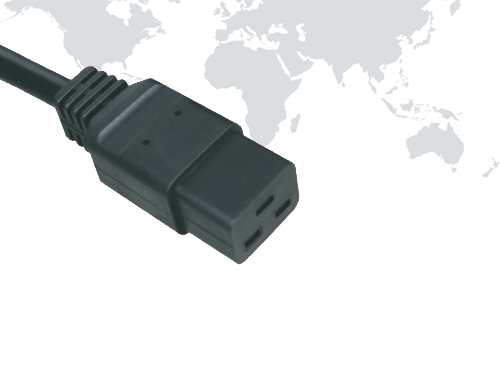

IEC 60320 C19 Power Cords

IEC 60320 C19 Power Cords

Certifications Approval and Compliances

ST6

SPECIFICATIONS

LABEL
VALUE
Model
ST6
Group Model
Models Description
PVC CONNECTOR ST6 TYPE 3P
Standard
IEC 60320 C19
Voltage
250V
Amperage
20A
Conductors
3 Poles 3 Wires
Jacket Material
PVC/Rubber
Temperature Rating
60C
Plug Weight
32g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
IEC 60320 C20
Testing
Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value

Available Wire Styles

Approval	Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
UL	16/3 14/3	SJT, SJTW, SJTO	20A/125V
VDE BSI IMQ UC SAA KC ��	3X1.0mm2 3X1.5mm2	H05VV-F	20A/250V
CCC	3X1.0mm2 3X1.5mm2	IEC 227 53 RVV	20A/250V
