IEC60320 Power Cords

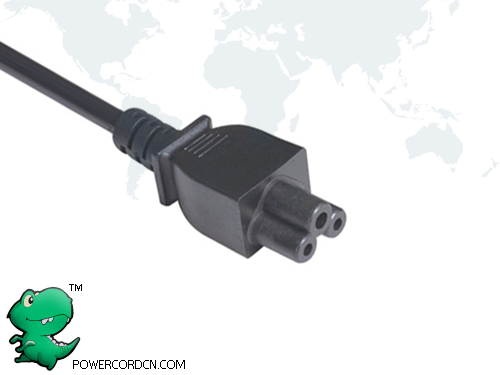

IEC 60320 C5 Power Cords

IEC 60320 C5 Power Cords
Certifications Approval and Compliances



SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    ST1
  • Group Model
  • Models Description
    Connectors Plug TYPE 2P-E
  • Standard
    IEC 60320 C5
  • Voltage
    125V-250V
  • Amperage
    10A
  • Conductors
    3 Poles 3 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    26g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C14/3PIN Plug
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
    PVC PLUG ST3 TYPE 2P+ E
    10A1250V ACCORDING TO UL817 CSA
    C22.2 N.495CEE (22)V.ANDJIS C3306.C8303.AND
    A.S.3112-1981 FIG2.1(a)
Available Wire Styles


ApprovalGauge/ #ConductorsCord TypeElectrical Rating (Amps/Volts)
UL18/3SVT,SJT,SPT-310/125V 13/125V
16/3SVT,SJT,SPT-313/125V 15A/125V

VDE
BSI       IMQ       UC       SAA       KC

3X0.5mm2
3X0.75mm2
H03VV-F
H05VV-F
10A/250V
CCC

3X0.5mm
23X0.75mm2

IEC 227 52 RVV

IEC 227 53 RVV

2.5A/250V
10A/250V


TYPE CASLE SEC. MM 2
H03W-F 3X0. 75
H05W-F 3X0. 75-1. 0-1. 5
SVT SVT0 3X18AWG
SPT-2 3X18AWG
SJTSJTO SJT00 3X18-16-14AWG
SJTOW SJT00W 3X1 8-1 6-14AWG
STSTO ST00 3X16AWG
STW ST00W 3X16AWG
3X1. 25-2. 0
