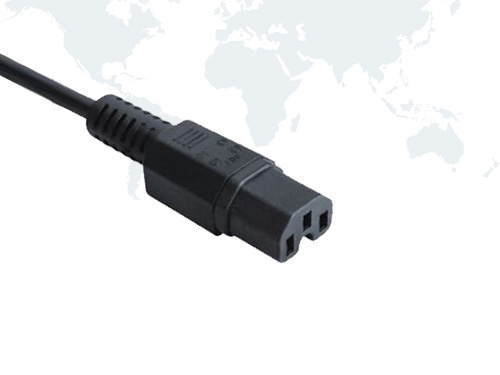

IEC 60320 C15 Power Cords

Certifications Approval and Compliances

ST3-H

SPECIFICATIONS

LABEL
VALUE
Model
ST3-H
Group Model
Models Description
PVC CONNECTOR ST5 TYPE 2P
Standard
IEC 60320 C15
Voltage
125V-250V
Amperage
10A-13A-15A
Conductors
2 Poles 2 Wires
Jacket Material
PVC/Rubber
Temperature Rating
60C
Plug Weight
18g
Color
Black is standard but any color available
Environmental Compliance
ROHS REACH PAHS
Conductor
IEC 60320 C16
Testing
Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
Country of Origin
CHINA
Other Value

Available Wire Styles

Approval	Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
UL	18/3	SVT, SJT, SJTW, SJTO	10/125V 13/125V
UL	16/3	SVT, SJT, SJTW, SJTO	13/125V 15A/125V
VDE BSI IMQ UC SAA KC ��	3X0.75mm2 3X1.0mm2	H05VV-F	10A/250 15A/250
CCC	3X0.75mm2 3X1.0mm2	IEC 227 53 RVV	10A/250V 15A/250V
