IEC60320 Power Cords

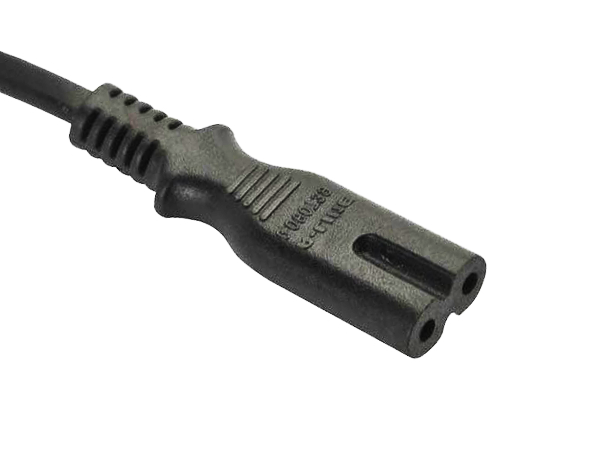

IEC 60320 C7 Power Cords

IEC 60320 C7 Power Cords
Certifications Approval and Compliances
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    ST2
  • Group Model
  • Models Description
    PVC CONNECTOR ST2 TYPE 2P
  • Standard
    IEC 60320 C7
  • Voltage
    125V-250V
  • Amperage
    2.5A
  • Conductors
    2 Poles 2 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    8g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C8
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

    Connector StandardIEC 60320-C7 Power Cords

    Maximum Current rating2.5A

    Maximum Voltage125V/250V

    Number of Poles and Wires2 poles, 2 wires


Available Wire Styles

Approval

Gauge/ # Conductors

Cord Type

Electrical Rating (Amps/Volts)

UL

18/2

SPT-1, SPT-1W,    SPT-2, SPT-2W, NISPT-2, SVT, SJT, NISPT-1

10/125V /    2.5A/125

VDE

      BSI

      IMQ

      UC

      SAA

      KC



2X0.5mm2

        2X0.75mm2

H03VVH2-F

      H05VVH2-F

2.5A/250V

CCC

2X0.5mm2

      2X0.75mm2

IEC 227 52 RVV

      IEC 227 53 RVV

2.5A/250V


Drawing and More
