European Power Cords

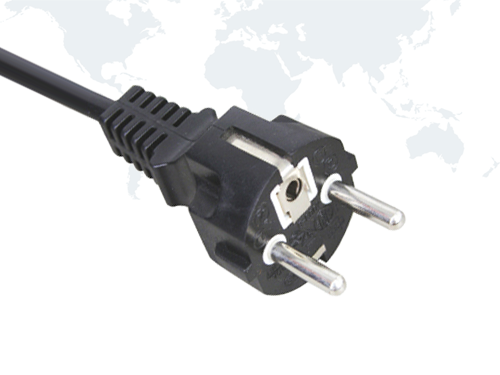

VDE Power Cords Germany Plug EU03-B

VDE Power Cords Germany Plug EU03-B
Certifications Approval and Compliances

EU03-B
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    EU03-B
  • Group Model
  • Models Description
    4.8mm round contacts pin on 19mm center
  • Standard
    Standard DIN VDE 0620-1 IEC884-1 CEE7
  • Voltage
    250V
  • Amperage
    16A
  • Conductors
    3 Poles 3 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    60g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

    European plug / Germany

    4.8mm round contacts pin on 19mm center

    4.8mm grounded hole and with side grounding clips

Available Wire Styles

3G0.75mm2, 3G1.0mm2, 3G1.5mm2

H03VV-F, H05VV-F, H03RT-H,

H05RR-F, H05RN-F, H07RN-F
