UL Wiring 1007 300V 80C Single Conductor with Extruded Insulation

UL Wiring 1007 300V 80C Single Conductor with Extruded Insulation
Certifications Approval and Compliances

UL

UL 1007
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    UL 1007
  • Group Model
    UL 1007
  • Models Description
    UL 1007
  • Standard
    Subj.758
  • Voltage
    300V
  • Amperage
  • Conductors
    1
  • Jacket Material
    PVC Sheathed
  • Temperature Rating
    80C
  • Plug Weight
    26g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles
APPLIANCE WIRING MATERIALSubj.758Section 1Page 1007Issued:1959-05-01
Revised:2013-02-22Style 1007Single Conductor with Extruded Insulation


Rating80 deg C, 300 Vac, Horizontal flame. Optional - 60 deg C or 80 deg C Oil.
Conductor32 AWG - 16 AWG, Solid or Stranded.
InsulationExtruded PVC, 15 mils minimum average thickness, 13 mils minimum thickness at any point.
StandardAppliance Wiring Material UL 758.
MarkingGeneral.
UseInternal wiring of appliances. Tags may indicate the following: 600 V Peak - For Electronic Use Only.

UL and the UL Logo are trademarks of UL LLC © 2016

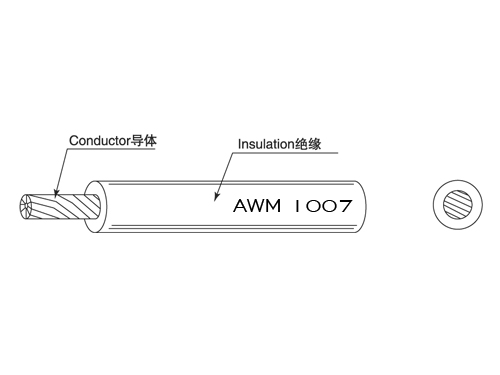

Drawing and More
