Argentina Power Cords

IRAM Standard Argentina Power Cords ARG302

IRAM Standard Argentina Power Cords ARG302
Certifications Approval and Compliances

ARG302
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    ARG302
  • Group Model
  • Models Description
    3 flat blades thickness 1.63mm
  • Standard
    Standard IRAM 2073
  • Voltage
    250V
  • Amperage
    10A
  • Conductors
    3 poles 3 wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    32g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C13
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles

IRAM/VDE Cables
H03VV-F 3G0.75mm2
H05VV-F 3G0.75mm2 3G1.0mm2
H05RR-F 3G0.75mm2 3G1.0mm2
H05RN-F 3G0.75mm2 3G1.0mm2

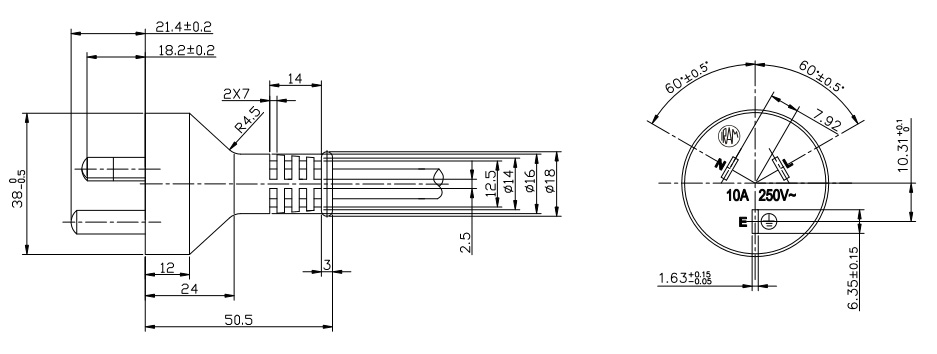

Drawing and More
