European Power Cords

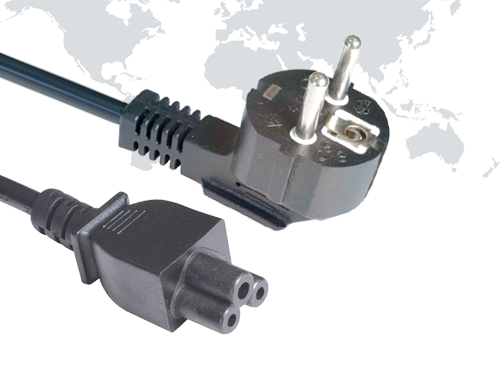

Europe plug SCHUKO Power Cords EU03 end IEC C5

Europe plug SCHUKO Power Cords EU03 end IEC C5
Certifications Approval and Compliances

EU03 to ST1
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    EU03 to ST1
  • Group Model
  • Models Description
    SCHUKO to IEC C5
  • Standard
    Schuko Plug CEE7-7 VII
  • Voltage
    250V
  • Amperage
    2.5A
  • Conductors
    3 Poles 3 Wires
  • Jacket Material
    PVC
  • Temperature Rating
    60C
  • Plug Weight
    26g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C6
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

    4.8mm round contacts pin on 19mm center

    4.8mm grounded hole and with side grounding clips

Available Wire Styles


Gauge/ # ConductorsCord TypeElectrical Rating (Amps/Volts)

0.75mm2

1.0mm2

H03VV-F

H05VV-F

16A/250V


Drawing and More
