European Power Cords

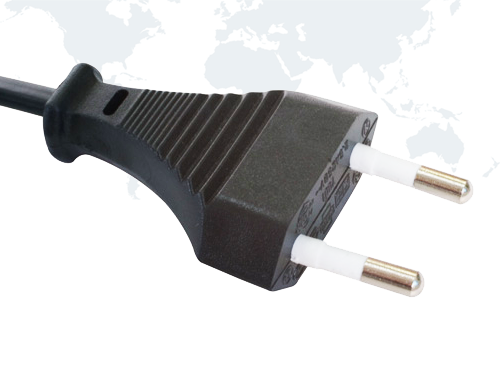

Europe Power Cords EU01

Europe Power Cords EU01
Certifications Approval and Compliances

SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    EU01
  • Group Model
  • Models Description
    PVC PLUG EU01 TYPE 2P PIN 4.0MM
  • Standard
    VDE Approvals ACCORDING TO IEC 60884-1
  • Voltage
    250V
  • Amperage
    2.5A
  • Conductors
    2 Poles 2 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    18g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C7
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

    MEET STANDARD

    PVC PLUG EU01 TYPE 2P

    ACCORDING TO IEC 60884-1

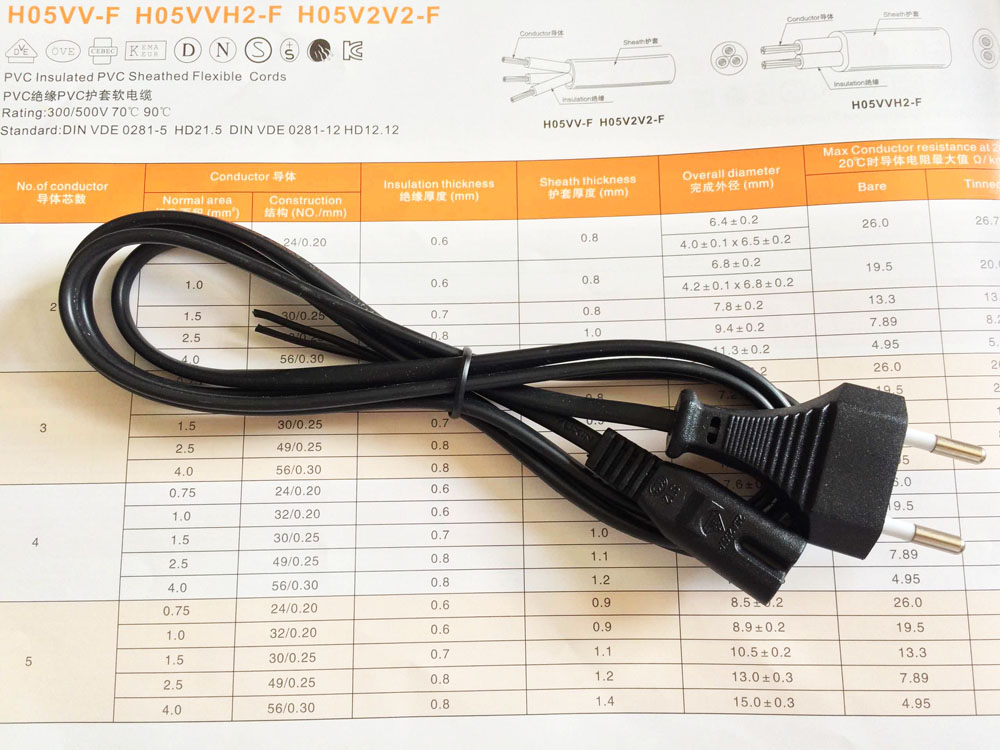

Available Wire Styles
H03VVH2-F
2X0.5~0.75
H05VV-F
2X0.75~1.0
H05VVH2-F
2X0.75
H05RR-F
2X0.75
H05RN-F
2X0.75

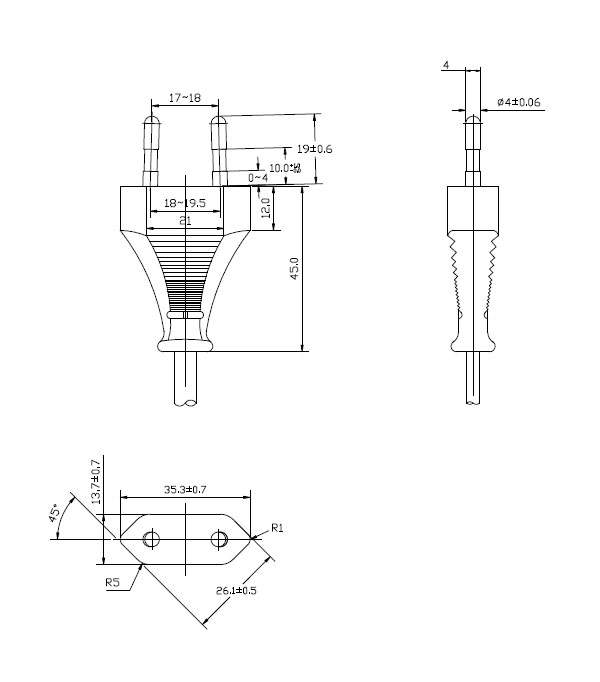

Drawing and More

Europe Power Cords EU01

Europe Power Cords EU01.jpg
