China Power Cords

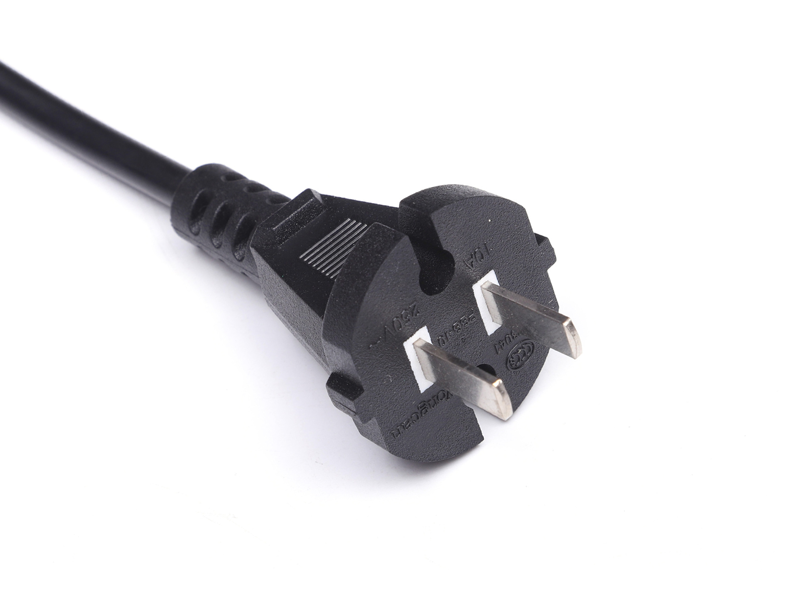

China CCC Power Cords C02

China CCC Power Cords C02
Certifications Approval and Compliances

2 Poles
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    2 Poles
  • Group Model
  • Models Description
    PVC PLUG TYPE 2P
  • Standard
    ACCORDING TO CCEE G82099. 1-1996 GB1002-96
  • Voltage
    250V
  • Amperage
    10A
  • Conductors
    2 Poles 2 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    26g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

China CCC Power Cords C02

Available Wire Styles

TYPE CABLE SEC.MM2

602271EC52 2X0.5-0.75

602271EC53 2X0.75-1.0-1.5

Drawing and More
