Australian Power Cords

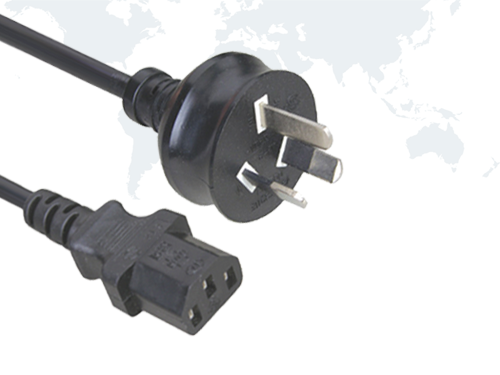

Australian Power Cords SAA Plug end IEC 60320 C13

Australian Power Cords SAA Plug end IEC 60320 C13
Certifications Approval and Compliances

AU02 to ST3
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    AU02 to ST3
  • Group Model
  • Models Description
    PVC PLUG TYPE 2P-E
  • Standard
    Standard AS 3112 IEC 83 A5
  • Voltage
    250V
  • Amperage
    10A
  • Conductors
    3 poles 3 wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    32g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles

H05VV-F, H05RN-F, H07RN-F,

DL3 250/440V, 4V-75 0.6V/1KV

3*0.75mm2, 3*1.0mm2, 3*1.5mm2

3*2.05mm2, 3*2.5mm2


Drawing and More
