Argentina Power Cords

Argentina Plug IRAM Power Cords ARG202

Argentina Plug IRAM Power Cords ARG202
Certifications Approval and Compliances

ARG202
Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    ARG202
  • Group Model
  • Models Description
    PVC PLUG Y010 TYPE 2 P
  • Standard
    ACCORDING TO IRAM2063 : 1982 IRAM2006 : 1 983
  • Voltage
    250V
  • Amperage
    10A
  • Conductors
    2 Poles 2 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    32g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C7
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles

TYPE CABLE SEC. MM 2

H03VVH2-F 2X 0.5-0.75
H05VVH2-F 2X 0.75-1.0
H05VV-F 2X 0.75-1.0
H03RT-F 2X 0.75-1.0
H05RN-F 2X 0.75-1.0

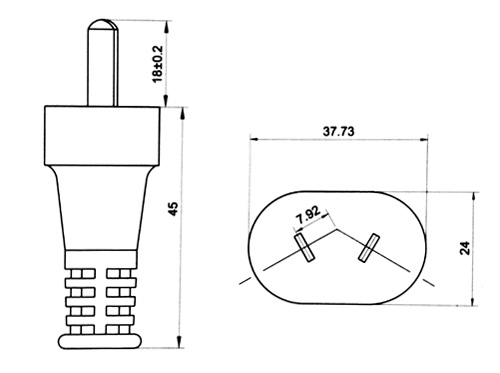

Drawing and More
