Argentina Power Cords

Argentina IRAM Approval Plug 2PIN Plug end IEC C13

Argentina IRAM Approval Plug 2PIN Plug end IEC C13
Certifications Approval and Compliances

IRAM 2PIN PLUG TO IEC C13

Argentina to C13 power cord: IRAM 2073 Argentina 3 pin plug to IEC C13 with H05VV-F wire 0.75mm2 power cord, 6 feet black with IRAM and UL Argentina approvals.

Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    IRAM 2PIN PLUG TO IEC C13
  • Group Model
  • Models Description
    2 poles 2 wires
  • Standard
    ACCORDING TO IRAM2063 : 1982 IRAM2006 : 1 983
  • Voltage
    250V
  • Amperage
    10A
  • Conductors
    2 Poles 2 Wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    32g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C13
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value
Available Wire Styles

TYPE CABLE SEC. MM 2

H05W-F 3X 0.75-1.0

H03 RT-F 3X 0.75-1.0

H05RN-F 3X 0.75-1.0

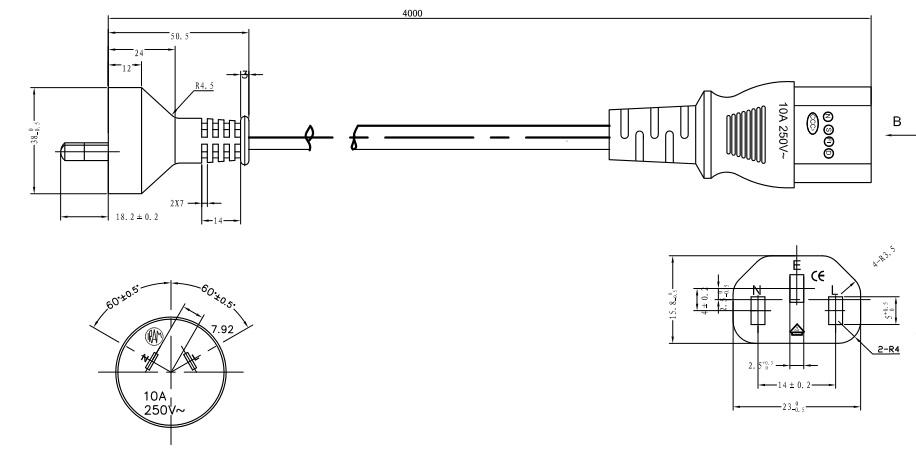

Drawing and More
