American Power Cords NEMA 5-15P end IEC 60320 C13

American Power Cords NEMA 5-15P end IEC 60320 C13
Certifications Approval and Compliances

NEMA 5-15P1 To C13

America IEC 60320 Plug

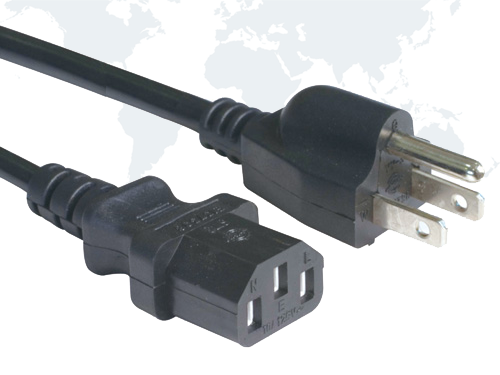

NEMA 5-15P standard USA 3 pin plug to IEC C13 with 18/3 SVT black wire, 3 feet with UL and CSA approvals.  This is the standard power cord supplied with most devices requiring the IEC C13 power connector.

Inquiry Now
SPECIFICATIONS
  • LABEL
    VALUE
  • Model
    NEMA 5-15P1 To C13
  • Group Model
  • Models Description
    3-pole 3-wire Plug
  • Standard
    Standard UL817 UL62 UL1581
  • Voltage
    125V
  • Amperage
    10A 13A 15A
  • Conductors
    3 poles 3 wires
  • Jacket Material
    PVC/Rubber
  • Temperature Rating
    60C
  • Plug Weight
    32g
  • Color
    Black is standard but any color available
  • Environmental Compliance
    ROHS REACH PAHS
  • Conductor
    IEC 60320 C13
  • Testing
    Hi-Pot (Dielectric Withstanding Voltage) Polarity (pinout) and Continuity
  • Country of Origin
    CHINA
  • Other Value

    16AWG/3C   13A/125V

    14AWG/3C   15A/125V

    12AWG/3C   15A/125V

Available Wire Styles

SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW,

ST, STW, STO, STOW, STOO, STOOW

16AWG/3C  14AWG/3C  12AWG/3C

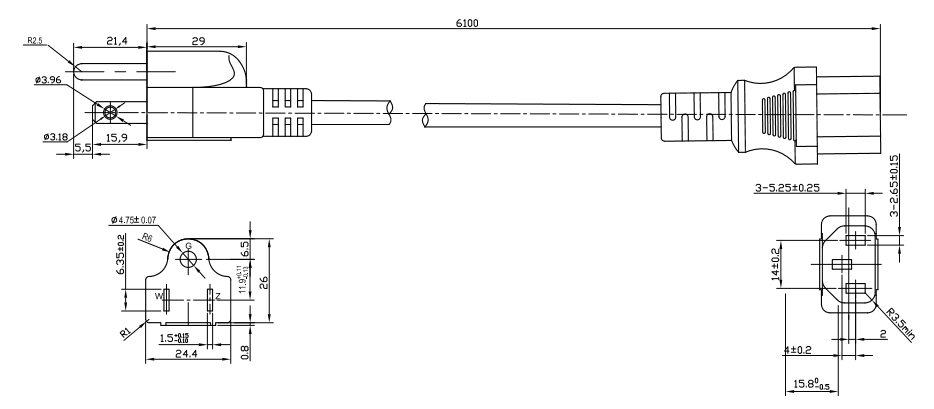

Drawing and More

American-Power-Cords-NEMA-5-15P-to-IEC 60320-C13.png
